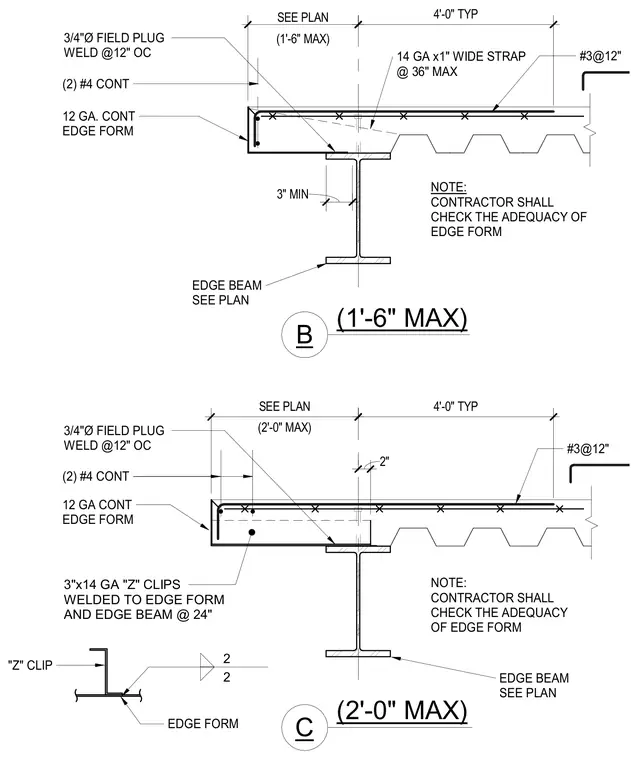

Two conditions for a concrete slab edge form are supported by a steel edge beam and metal deck. The assembly features a continuous 12-gauge metal edge form reinforced with two continuous number four rebars and secured with three-quarter-inch diameter field plug welds at twelve inches on center. The first condition incorporates fourteen-gauge by one-inch wide straps spaced at a maximum of thirty-six inches. The second condition utilizes three-inch by fourteen-gauge Z-clips welded to the edge form and edge beam at twenty-four inches on center, along with three number three bars at twelve inches on center. A minimum three-inch bearing is provided at the steel edge beam, sized per plan. A note requires the contractor to verify the adequacy of the edge form.
(1'-6" MAX) B #3@12" 12 GA. CONT EDGE FORM NOTE: CONTRACTOR SHALL CHECK THE ADEQUACY OF EDGE FORM 14 GA x1" WIDE STRAP @ 36" MAX (1'-6" MAX) SEE PLAN (2'-0" MAX) C #3@12" 3"x14 GA "Z" CLIPS WELDED TO EDGE FORM AND EDGE BEAM @ 24" "Z" CLIP NOTE: CONTRACTOR SHALL CHECK THE ADEQUACY OF EDGE FORM EDGE BEAM SEE PLAN EDGE FORM (2) #4 CONT 12 GA CONT EDGE FORM 3/4"Ø FIELD PLUG WELD @12" OC 4'-0" TYP (2'-0" MAX) SEE PLAN EDGE BEAM SEE PLAN 4'-0" TYP 3" MIN 2 2 2" (2) #4 CONT 3/4"Ø FIELD PLUG WELD @12" OC
