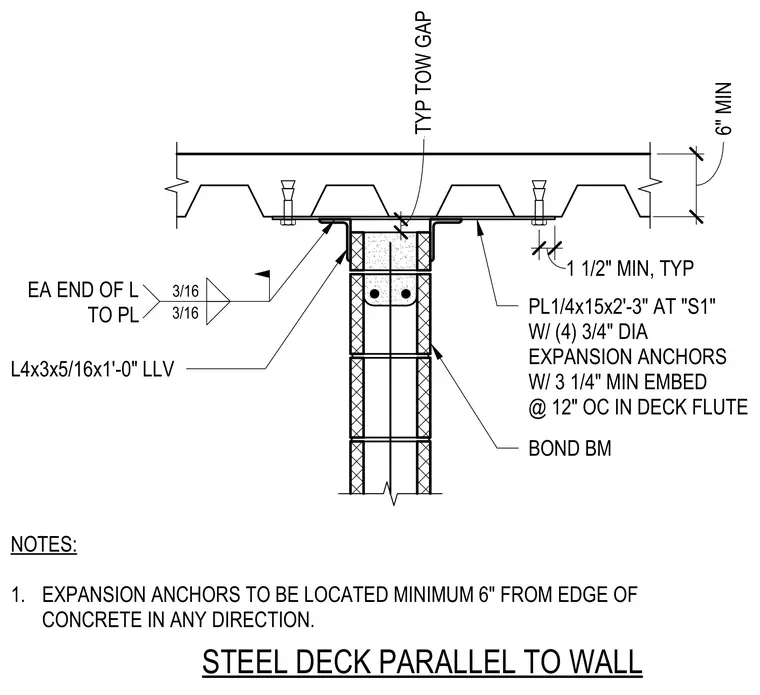

A quarter-inch by fifteen-inch by two-foot-three-inch plate designated as S1 anchors to the top of a concrete masonry unit bond beam with four three-quarter-inch diameter expansion anchors having three and a quarter-inch minimum embedment at twelve inches on center in the deck flute. An L4x3x5/16 by one-foot-long angle connects to the plate with three-sixteenths-inch fillet welds at each end of the angle. A typical top-of-wall gap is maintained between the deck and the wall assembly.
PL1/4x15x2'-3" AT "S1" W/ (4) 3/4" DIA EXPANSION ANCHORS W/ 3 1/4" MIN EMBED @ 12" OC IN DECK FLUTE BOND BM L4x3x5/16x1'-0" LLV EA END OF L TO PL 3/16 3/16 STEEL DECK PARALLEL TO WALL 1 1/2" MIN, TYP TYP TOW GAP 1 1/4" 6" 6" MIN NOTES: 1. EXPANSION ANCHORS TO BE LOCATED MINIMUM 6" FROM EDGE OF CONCRETE IN ANY DIRECTION.
