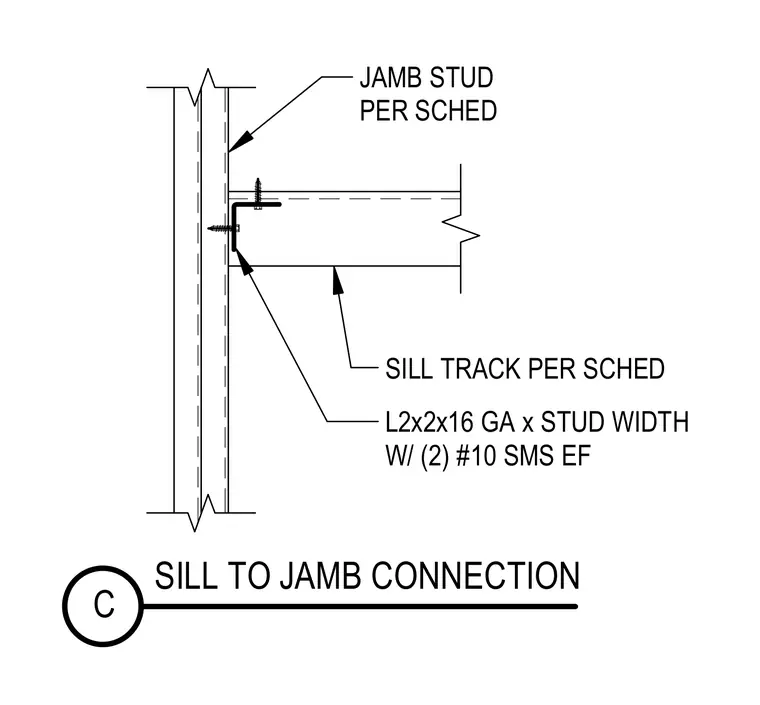

A cold-formed steel sill track bears against a jamb stud sized per the structural schedule. The sill track is secured to the jamb stud with a 2x2 by 16 gauge angle clip matching the stud width. Two number 10 sheet metal screws fasten the angle clip to each connecting member.
JAMB STUD PER SCHED SILL TRACK PER SCHED L2x2x16 GA x STUD WIDTH W/ (2) #10 SMS EF SILL TO JAMB CONNECTION C
