A cast-in-place concrete tie beam measuring two feet by two feet is reinforced with four total number six continuous steel bars and number three stirrups spaced at twelve inches on center. The assembly maintains a typical three-inch concrete clear cover. A sand layer is provided per detail eight on sheet SD2 when dimension L equals one-half inch. A footing is placed per plan where it occurs, with additional items referenced to sheet nineteen.

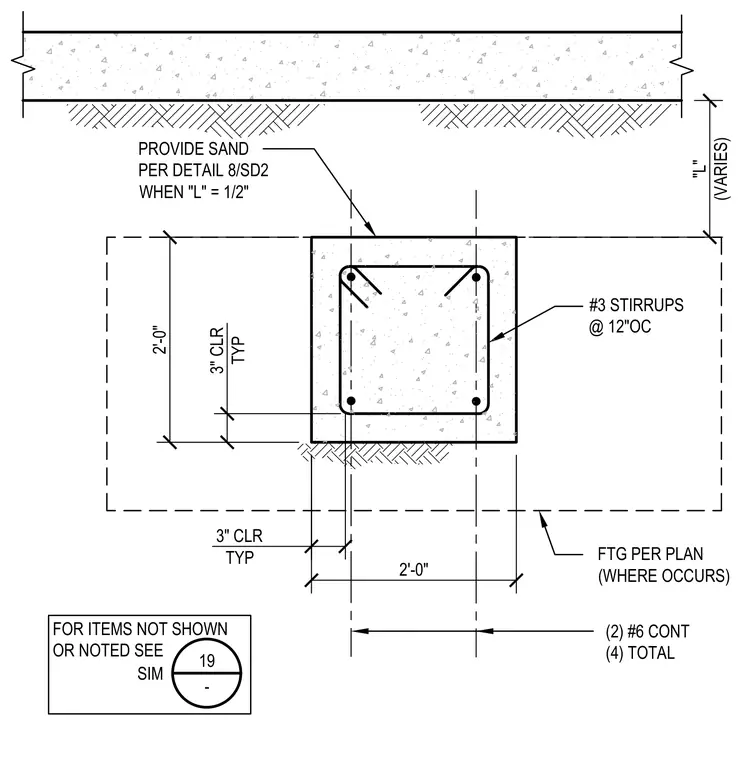

3" CLR TYP 3" CLR TYP 2'-0" 2'-0" FOR ITEMS NOT SHOWN OR NOTED SEE 19 - SIM #3 STIRRUPS @ 12"OC FTG PER PLAN (WHERE OCCURS) (2) #6 CONT (4) TOTAL PROVIDE SAND PER DETAIL 8/SD2 WHEN "L" = 1/2" "L" (VARIES)
