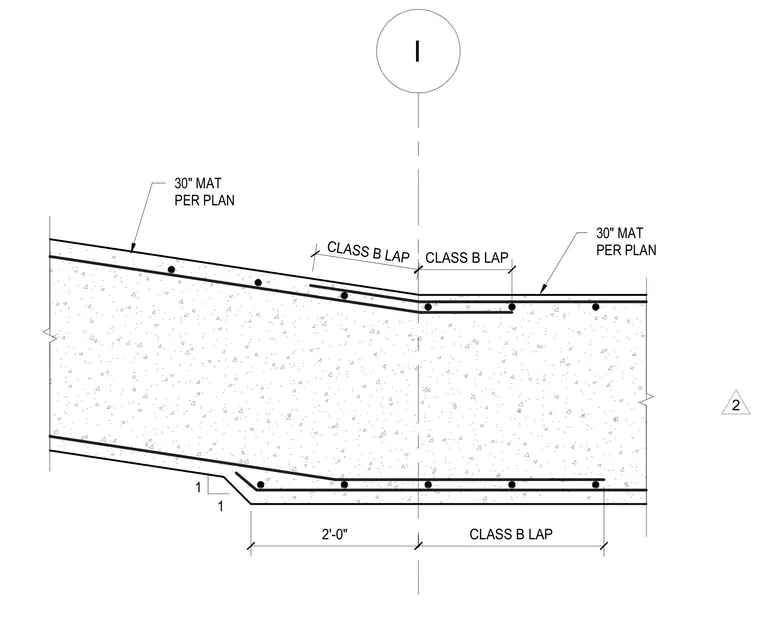

A reinforced concrete ramp section details the placement of longitudinal reinforcing bars featuring Class B lap splices over designated intervals. A thirty-inch mat reinforcement specified per plan is embedded within the concrete slab. Dimensions mark a two-foot spacing interval at the structural break. The concrete thickness and profile transition according to the engineering layout.
I CLASS B LAP CLASS B LAP CLASS B LAP 30" MAT PER PLAN 1 1 30" MAT PER PLAN 2'-0" 2
