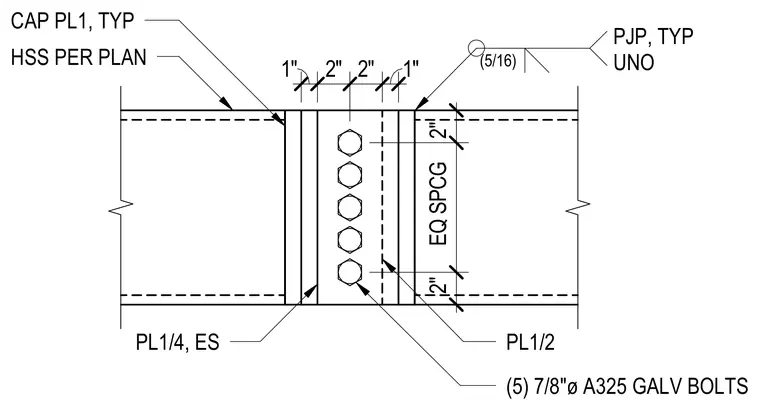

Two hollow structural sections are joined end-to-end using a welded cap plate and a bolted connection across intermediate plates. A one-inch thick cap plate is welded to the hollow structural section using a partial-joint-penetration weld typically on one side with a five-sixteenth-inch fillet size. A one-half-inch thick plate connects the members with a vertical line of five seven-eighth-inch diameter galvanized A325 bolts spaced at equal intervals. Additional one-quarter-inch plates are provided on each side, tied with specified edge distances and bolt spacings.
2" EQ SPCG 2" 1" 2" 2" 1" (5) 7/8"ø A325 GALV BOLTS HSS PER PLAN PL1/4, ES PL1/2 CAP PL1, TYP PJP, TYP UNO (5/16)
