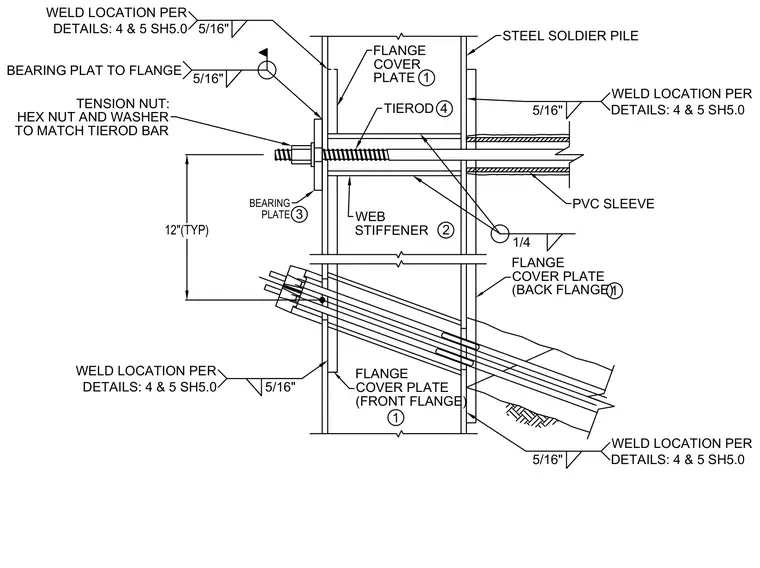

A steel tierod connects to a steel soldier pile through a bearing plate with a matching tension nut, hex nut, and washer. The soldier pile is reinforced with front and back flange cover plates welded with five-sixteenth-inch fillet welds and web stiffeners joined with quarter-inch fillet welds. A PVC sleeve surrounds the tierod bar passing behind the pile flange. Weld locations are detailed per related structural sheets.
STEEL SOLDIER PILE 5/16" WELD LOCATION PER DETAILS: 4 & 5 SH5.0 TIEROD 4 FLANGE COVER PLATE 1 1/4 WEB STIFFENER 2 FLANGE COVER PLATE (BACK FLANGE)1 PVC SLEEVE 5/16" WELD LOCATION PER DETAILS: 4 & 5 SH5.0 5/16" WELD LOCATION PER DETAILS: 4 & 5 SH5.0 12"(TYP) BEARING PLATE 3 TENSION NUT: HEX NUT AND WASHER TO MATCH TIEROD BAR 5/16" WELD LOCATION PER DETAILS: 4 & 5 SH5.0 FLANGE COVER PLATE (FRONT FLANGE) 1 5/16" BEARING PLAT TO FLANGE
