An insulated precast concrete wall panel connects laterally for out-of-plane forces to a main structural steel beam. A panel attachment plate provided by the preeaster secures the panel to the steel framing member. A three-inch horizontal slotted hole is required at each panel tieback to accommodate differential movement. The general contractor must coordinate all attachment details and installation with the precast manufacturer.

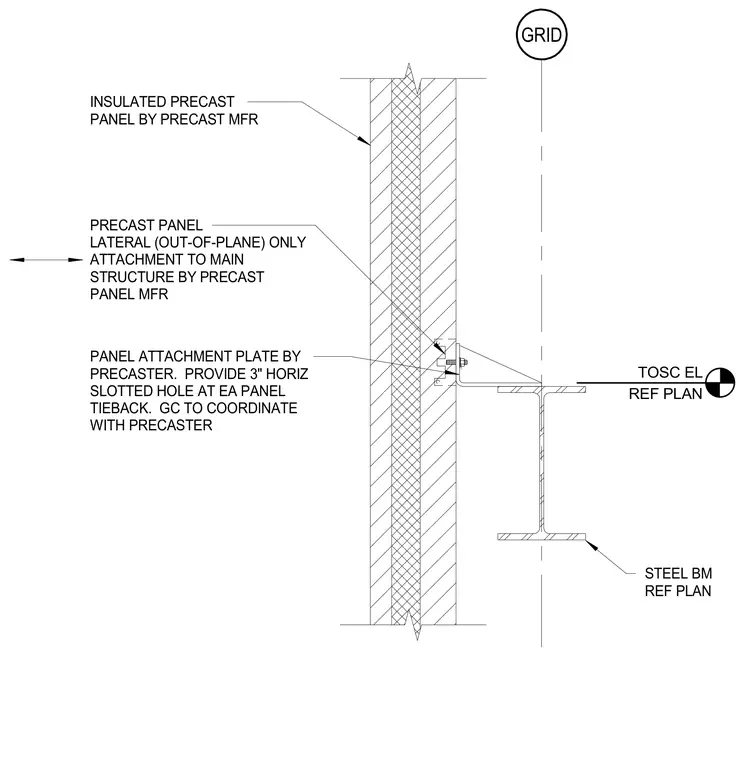

GRID TOSC EL REF PLAN STEEL BM REF PLAN INSULATED PRECAST PANEL BY PRECAST MFR PRECAST PANEL LATERAL (OUT-OF-PLANE) ONLY ATTACHMENT TO MAIN STRUCTURE BY PRECAST PANEL MFR PANEL ATTACHMENT PLATE BY PRECASTER. PROVIDE 3" HORIZ SLOTTED HOLE AT EA PANEL TIEBACK. GC TO COORDINATE WITH PRECASTER
