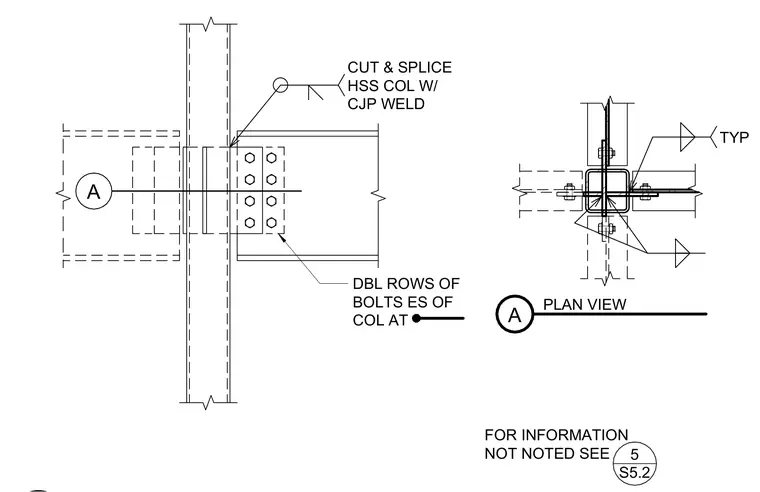

Steel beams frame into a hollow structural section column using double rows of bolts on each side of the column with a typical plan configuration. A column cut and splice is detailed with a complete joint penetration weld.
PLAN VIEW TYP DBL ROWS OF BOLTS ES OF COL AT A A CUT & SPLICE HSS COL W/ CJP WELD FOR INFORMATION NOT NOTED SEE 5 S5.2
