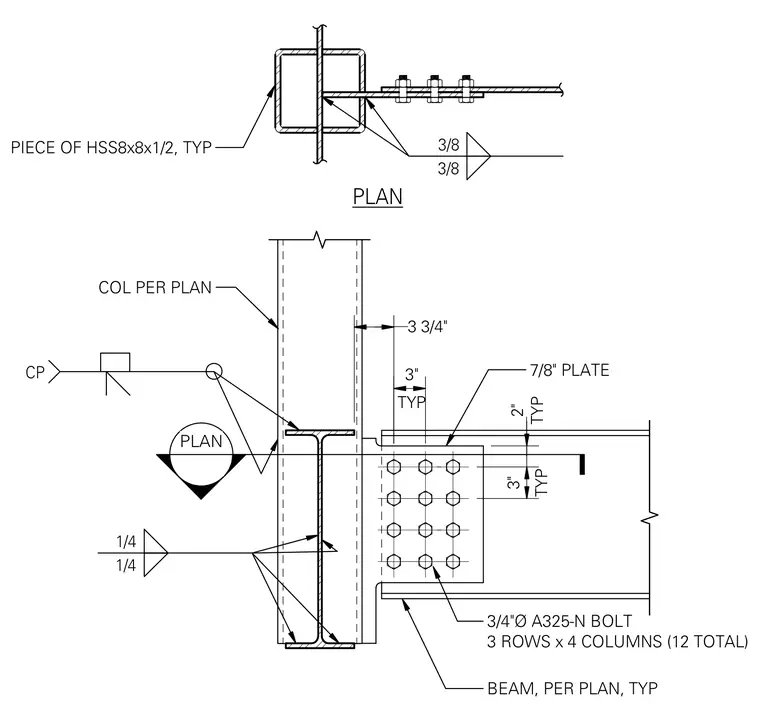

A structural steel beam connects to a column per plan using a seven-eighths-inch thick plate welded to the column flange with three-eighths-inch fillet welds. The beam web attaches to the plate with twelve three-quarter-inch diameter A325-N bolts arranged in three rows and four columns, spaced three inches horizontally and two inches vertically on typical centers. An HSS8x8x1/2 piece reinforces the back of the column with quarter-inch fillet welds.
7/8" PLATE BEAM, PER PLAN, TYP 3/4"Ø A325-N BOLT 3 ROWS x 4 COLUMNS (12 TOTAL) TYP 3" TYP 2" TYP 3" PIECE OF HSS8x8x1/2, TYP 1/4 1/4 3/8 3/8 PLAN PLAN CP 3 3/4" COL PER PLAN
