Structural · S-6X2RQ

Concrete Slab Step at Metal Deck and Structural Steel

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Floors / Slabs Decks Arches Anchors / Embeds Reinforcing

Connections

Shear Tab / Single Plate Rebar Splice / Development

About this detail

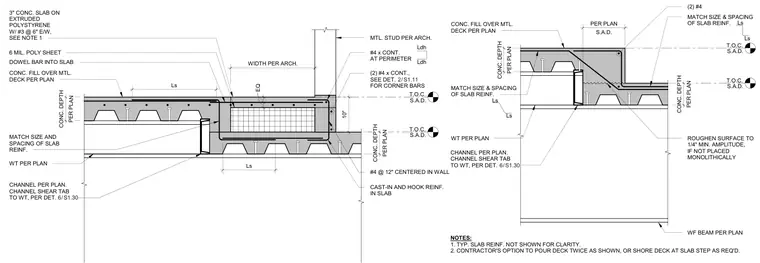

A structural concrete slab step condition at a level transition consists of a concrete fill over metal deck supported by wide-flange and WT beams, with channels connected via shear tabs. A recessed slab section incorporates extruded polystyrene insulation beneath a three-inch concrete slab reinforced with number three bars at six inches each way, tied with dowel bars and perimeter reinforcement. Vertical concrete steps and curb elements are reinforced with number four bars at twelve inches centered in the wall, with cast-in and hooked reinforcement extending into the slab. Notes permit the contractor to pour the deck twice or shore the deck at the slab step as required, and require roughening non-monolithic concrete surfaces to a quarter-inch minimum amplitude.
