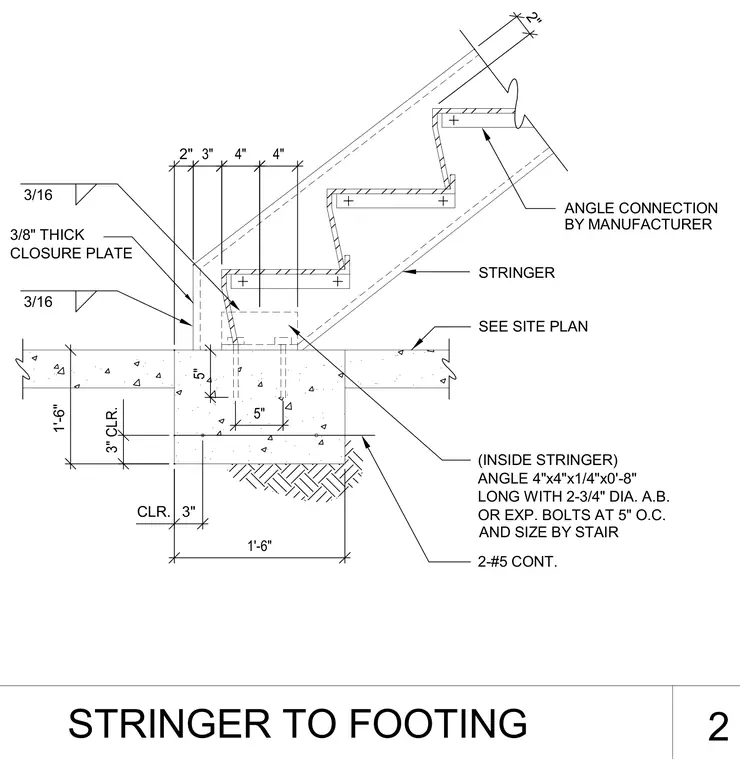

The stair stringer connects to a concrete footing using an interior 4-inch by 4-inch by 1/4-inch angle, measuring 0'-8" long and secured with two 3/4-inch diameter anchor bolts or expansion bolts spaced at 5 inches on center. A 3/8-inch thick closure plate is welded to the assembly with 3/16-inch fillet welds. The concrete footing is reinforced with two continuous number 5 rebars and requires 3 inches of clear cover.
STRINGER TO FOOTING 2 5" 5" 4" 1'-6" 3" CLR. 1'-6" CLR. 3" 4" CLOSURE PLATE 3/8" THICK 3" 2" ANGLE 4"x4"x1/4"x0'-8" LONG WITH 2-3/4" DIA. A.B. OR EXP. BOLTS AT 5" O.C. 2-#5 CONT. AND SIZE BY STAIR (INSIDE STRINGER) ANGLE CONNECTION BY MANUFACTURER STRINGER SEE SITE PLAN 2" 3/16 3/16
