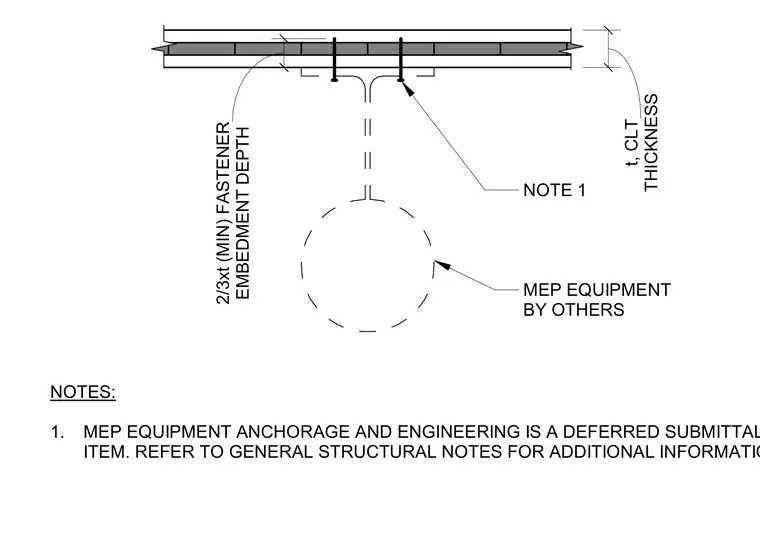

Mechanical, electrical, and plumbing equipment hangs from a cross-laminated timber deck using fasteners embedded to a minimum depth of two-thirds of the panel thickness. Equipment attachment and engineering are provided as a deferred submittal item per structural notes. The fastener penetrates the cross-laminated timber panel while maintaining the required minimum embedment depth relative to the overall panel thickness t.
MEP EQUIPMENT BY OTHERS NOTE 1 THICKNESS t, CLT EMBEDMENT DEPTH 2/3xt (MIN) FASTENER NOTES: 1. MEP EQUIPMENT ANCHORAGE AND ENGINEERING IS A DEFERRED SUBMITTAL ITEM. REFER TO GENERAL STRUCTURAL NOTES FOR ADDITIONAL INFORMATION.
