Structural · S-6WWSM

Mechanical Pad On Deck

Elements

About this detail

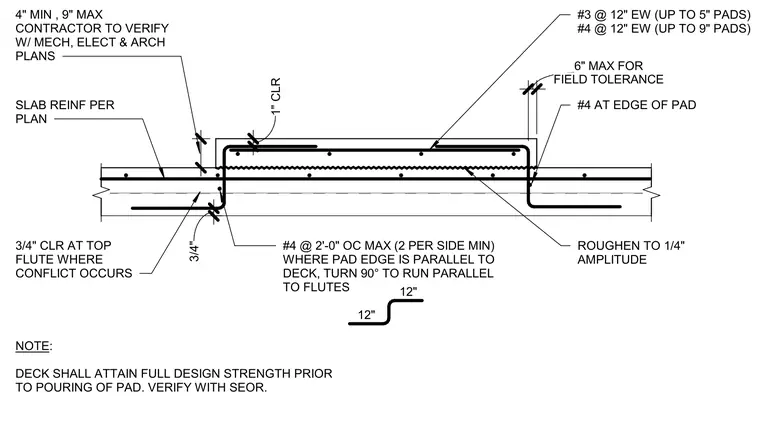

This concrete equipment pad is cast on top of a structural concrete slab and metal deck with slab reinforcement detailed per plan. The pad interface requires the supporting concrete to be roughened to one-quarter inch amplitude. Pad reinforcement consists of number three bars at twelve inches each way for pads up to five inches thick, or number four bars at twelve inches each way for pads up to nine inches thick. Number four bars are placed at the edge of the pad, with number four bars at two feet zero inches on center maximum with two per side minimum where the pad edge is parallel to the deck, turning ninety degrees to run parallel to the flutes. Clearances include one inch at the top and three-quarters of an inch at the top flute where conflicts occur, with a four inch minimum and nine inch maximum dimension. The contractor must verify coordination with mechanical, electrical, and architectural plans. The supporting deck must attain full design strength prior to pouring the pad, verified with the structural engineer of record.
