Structural · S-6WVT2

HSS Screenwall Girt to Post Connection Detail

Materials

Steel Metal (misc.)

Elements

Columns Beams Roofs Drainage

Connections

HSS Connection

About this detail

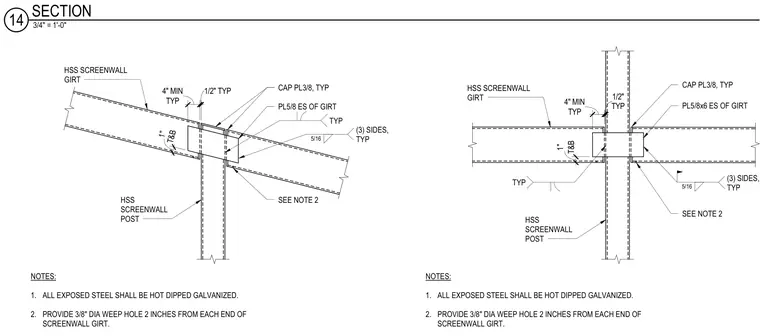

Hollow structural section screenwall girts connect to a vertical hollow structural section screenwall post via a five-eighths-inch thick plate, secured with five-sixteenth-inch fillet welds on three sides typically. A three-eighths-inch thick cap plate is provided at the top, along with a four-inch minimum dimension and a one-half-inch typical clearance. Two-inch-long weep holes measuring three-eighths of an inch in diameter are provided near each end of the screenwall girt. All exposed structural steel is specified to be hot-dipped galvanized.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
