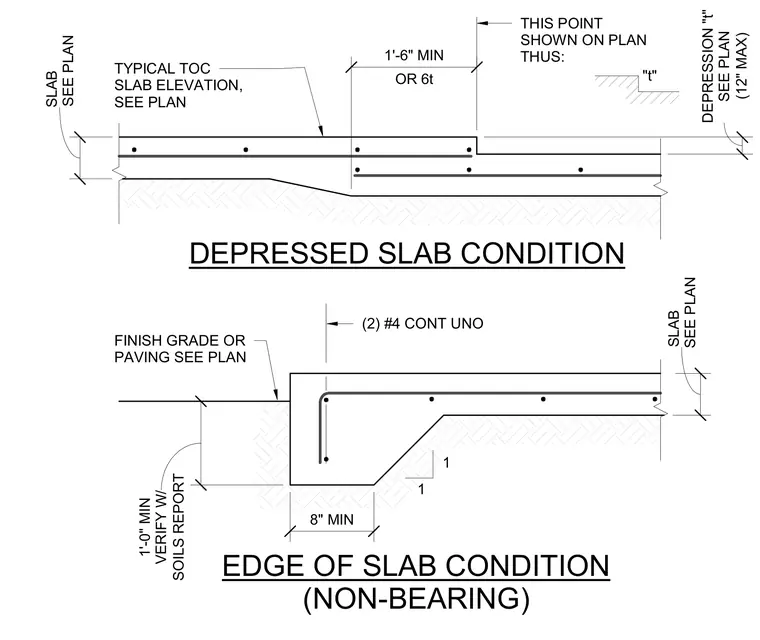

The non-bearing slab edge condition features a thickened edge supported on prepared subgrade, reinforced with two continuous number four rebars bent into the turn-down, with a minimum depth of one foot verified against the soils report and an eight-inch minimum width. The depressed slab condition provides a transition with a variable depth depression up to twelve inches maximum, extending a minimum of one foot six inches or six times the slab thickness. Both conditions coordinate with finish grade or paving elevations and top of concrete slab elevations sized per plan.
EDGE OF SLAB CONDITION (NON-BEARING) DEPRESSED SLAB CONDITION (2) #4 CONT UNO "t" 1 1 TYPICAL TOC SLAB ELEVATION, SEE PLAN THIS POINT SHOWN ON PLAN THUS: FINISH GRADE OR PAVING SEE PLAN (12" MAX) DEPRESSION "t" SEE PLAN SEE PLAN SLAB SEE PLAN SLAB SOILS REPORT 1'-0" MIN VERIFY W/ 8" MIN OR 6t 1'-6" MIN
