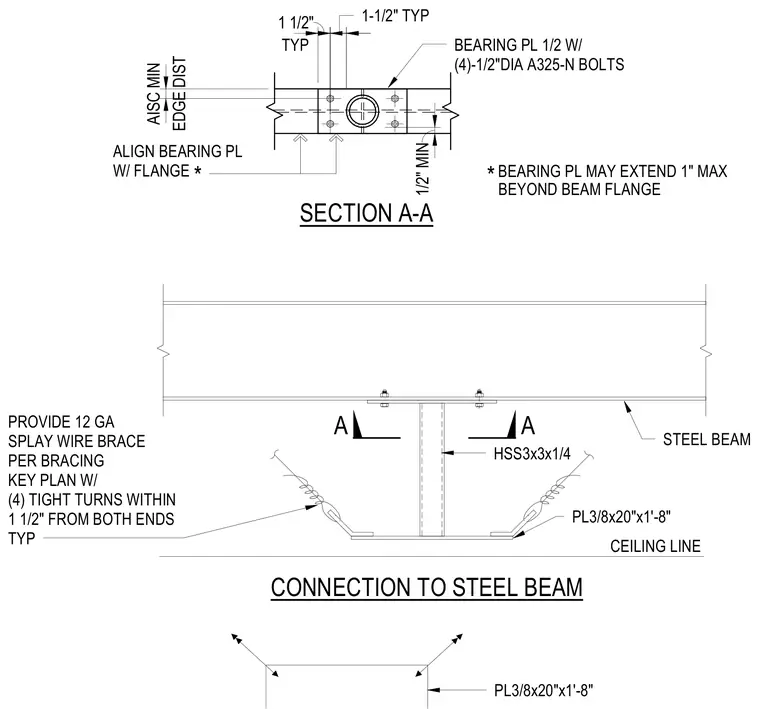

A hollow structural section drop member is bolted to the underside of a steel beam via top and bottom bearing plates. Each three-eighths-inch thick by twenty-inch wide by one-foot eight-inch long bearing plate is fastened with four one-half-inch diameter A325-N bolts, with plates aligned to the beam flange and permitted to extend a maximum of one inch beyond. A twelve-gauge splay wire brace connects to the lower plate per the bracing key plan, featuring four tight turns within one and one-half inches from both ends. Section A-A details the bolt pattern and edge distances meeting American Institute of Steel Construction minimum requirements.
CONNECTION TO STEEL BEAM CEILING LINE PROVIDE 12 GA SPLAY WIRE BRACE PER BRACING KEY PLAN W/ (4) TIGHT TURNS WITHIN 1 1/2" FROM BOTH ENDS TYP PL3/8x20"x1'-8" HSS3x3x1/4 PL3/8x20"x1'-8" STEEL BEAM A A TYP 1-1/2" TYP ALIGN BEARING PL W/ FLANGE BEARING PL 1/2 W/ (4)-1/2"DIA A325-N BOLTS * * BEARING PL MAY EXTEND 1" MAX BEYOND BEAM FLANGE SECTION A-A EDGE DIST AISC MIN 1 1/2" 1/2" MIN
