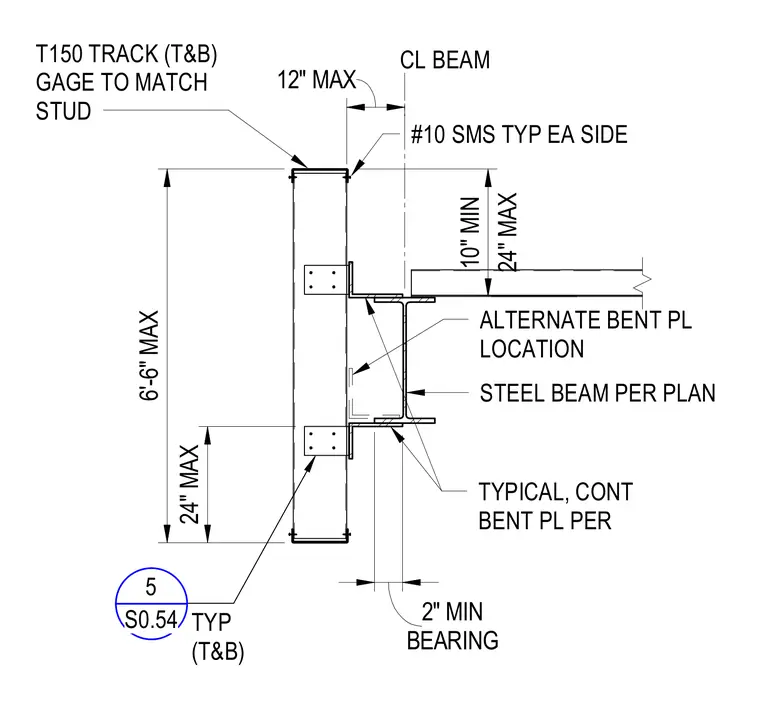

A T150 cold-formed steel track connects to a structural steel beam via continuous bent plates secured with number ten sheet metal screws on each side. The steel beam has a minimum bearing of two inches and alternate bent plate locations spaced per plan. The top and bottom tracks feature gages matching the stud, with vertical clearances dimensioned up to six feet six inches maximum.
T150 TRACK (T&B) GAGE TO MATCH STUD #10 SMS TYP EA SIDE STEEL BEAM PER PLAN TYPICAL, CONT BENT PL PER CL BEAM ALTERNATE BENT PL LOCATION 24" MAX 10" MIN 12" MAX 6'-6" MAX BEARING 2" MIN TYP (T&B) 5 S0.54 24" MAX
