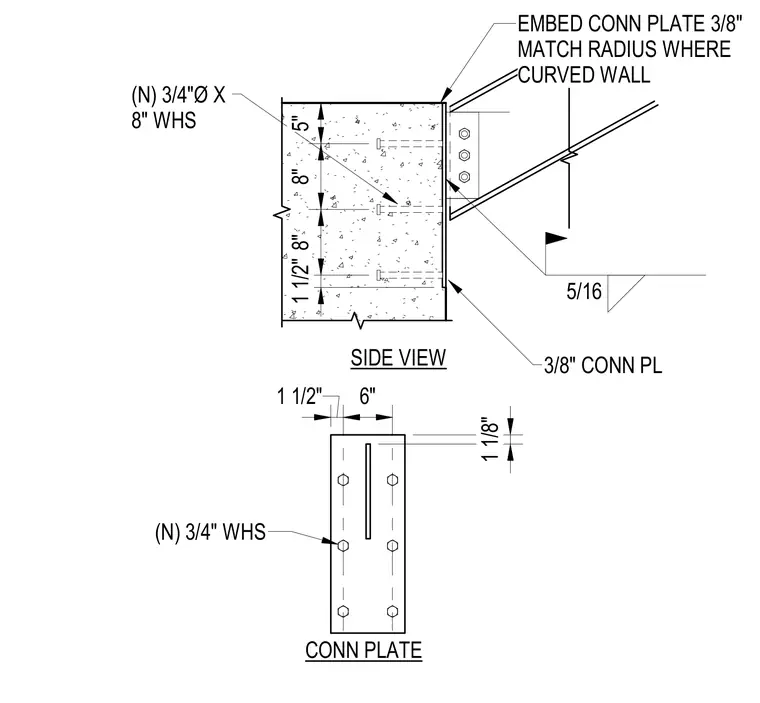

A stair stringer connects to a concrete pilaster using a three-eighths-inch connection plate welded to the structural steel stringer with a five-sixteenth-inch fillet weld. The connection plate matches the radius of the curved concrete wall where applicable. The embedded connection plate is secured into the concrete pilaster using new three-quarter-inch diameter by eight-inch long welded head studs arranged in vertical and horizontal spacings of one and one-half inches, six inches, five inches, and eight inches.
5/16 EMBED CONN PLATE 3/8" MATCH RADIUS WHERE CURVED WALL (N) 3/4"Ø X 8" WHS 1 1/2" 6" (N) 3/4" WHS SIDE VIEW CONN PLATE 5" 8" 8" 1 1/2" 1 1/8" 3/8" CONN PL
