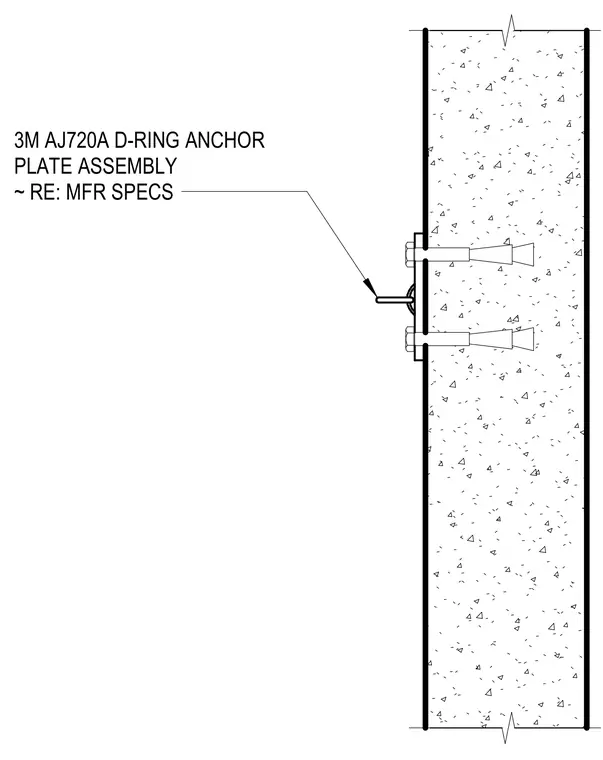

The 3M AJ720A D-ring anchor plate assembly is surface-mounted to a concrete wall element. The assembly is secured by two threaded fasteners that connect to embedded anchors within the concrete substrate. Installation and specific hardware requirements are to be performed in accordance with the manufacturer's specifications.
Text on the drawing
PLAN VIEW 3M AJ720A D-RING ANCHOR PLATE ASSEMBLY ~ RE: MFR SPECS
