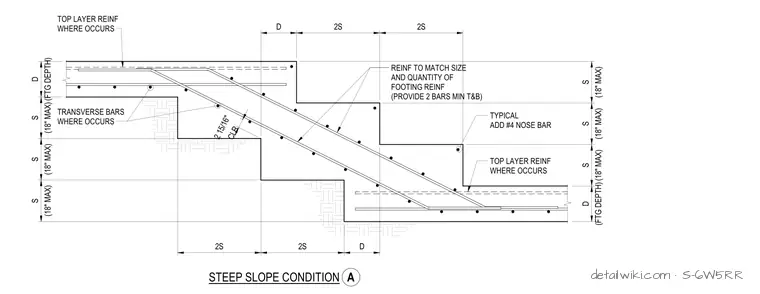

Reinforced concrete stepped footing detail for steep slope conditions requiring continuous top and bottom reinforcement matching the primary footing size and quantity with a minimum of two bars. The stepped transition incorporates transverse bars where required at a maximum spacing of eighteen inches and an additional number four nose bar at each internal corner step. Footing depth and stepping dimensions are proportioned with depth dimensions designated as D and spacing increments as S and two times S. A clear cover of two and fifteen-sixteenths inches is maintained for the sloping step reinforcement.
STEEP SLOPE CONDITION REINF TO MATCH SIZE AND QUANTITY OF FOOTING REINF (PROVIDE 2 BARS MIN T&B) TYPICAL ADD #4 NOSE BAR TOP LAYER REINF WHERE OCCURS TRANSVERSE BARS WHERE OCCURS TOP LAYER REINF WHERE OCCURS (18" MAX) S (18" MAX) S (18" MAX) S (FTG DEPTH) D 2S 2S D D 2S 2S (FTG DEPTH) D (18" MAX) S (18" MAX) S (18" MAX) S CLR 2 15/16" A
