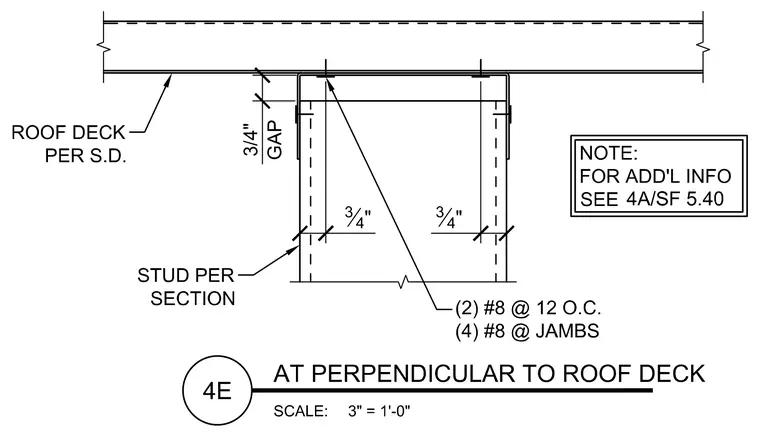

A vertical stud framing member terminates below a roof deck per structural drawings, maintaining a three-quarter inch gap for deflection. The top track connects to the wall framing below with two number eight bars at twelve inches on center, alongside four number eight bars at the jambs. Additional information is referenced on sheet four A slash S F five point four zero.
