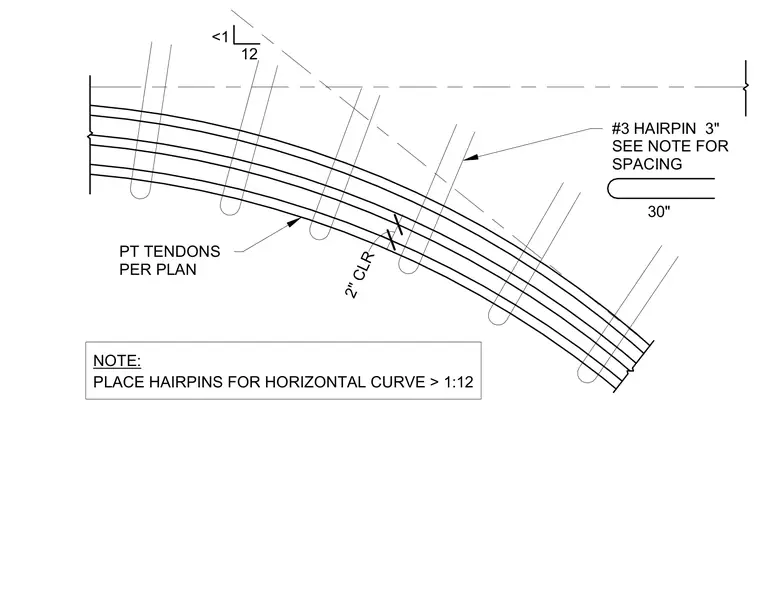

This plan detail shows post-tensioned tendons routed along a horizontal curve with a radius greater than one to twelve. Number three hairpins measuring thirty inches are placed around the tendons per the spacing notes. A two-inch clear spacing is maintained.
<1 12 30" NOTE: PLACE HAIRPINS FOR HORIZONTAL CURVE > 1:12 PT TENDONS PER PLAN 2" CLR #3 HAIRPIN 3" SEE NOTE FOR SPACING
