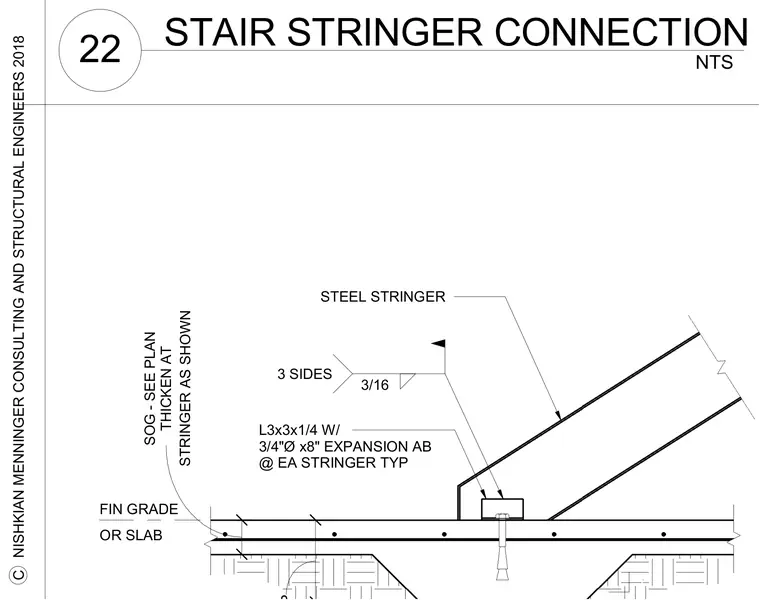

A steel stair stringer connects to a concrete slab on grade or finished grade with a 3x3x1/4 inch structural steel angle. The angle is secured to the thickened slab using 3/4-inch diameter by 8-inch long expansion anchor bolts at each stringer. A 3/16-inch fillet weld on three sides connects the stringer to the angle as shown. The slab on grade is thickened at the stringer per plan requirements.
OR SLAB FIN GRADE STEEL STRINGER L3x3x1/4 W/ 3/4"Ø x8" EXPANSION AB @ EA STRINGER TYP 3/16 3 SIDES STRINGER AS SHOWN SOG - SEE PLAN THICKEN AT C NISHKIAN MENNINGER CONSULTING AND STRUCTURAL ENGINEERS 2018 NTS 22 STAIR STRINGER CONNECTION
