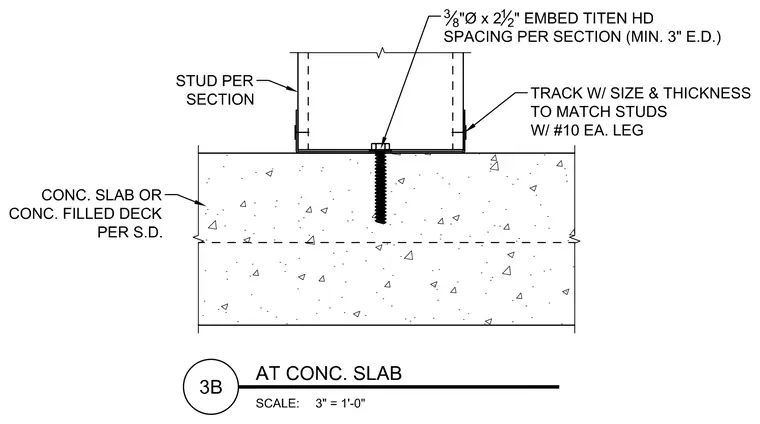

A cold-formed steel track is anchored directly to a concrete slab or concrete-filled metal deck using three-eighths-inch diameter by two-and-a-half-inch embedment Titen HD concrete screw anchors spaced per section with a minimum three-inch edge distance. The track features size and thickness matching the framing studs and is secured with number ten screws at each leg. Framing studs are sized per section and set into the base track.
