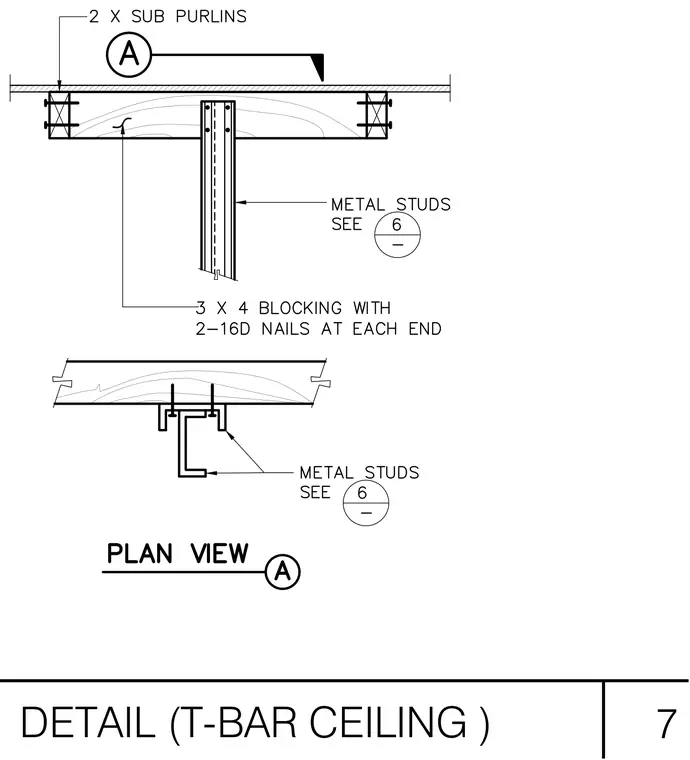

Metal studs connect to a ceiling assembly constructed with two-by sub purlins and three-by-four blocking fastened with two 16d nails at each end. A plan view shows the alignment of the metal studs relative to the ceiling support members.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
