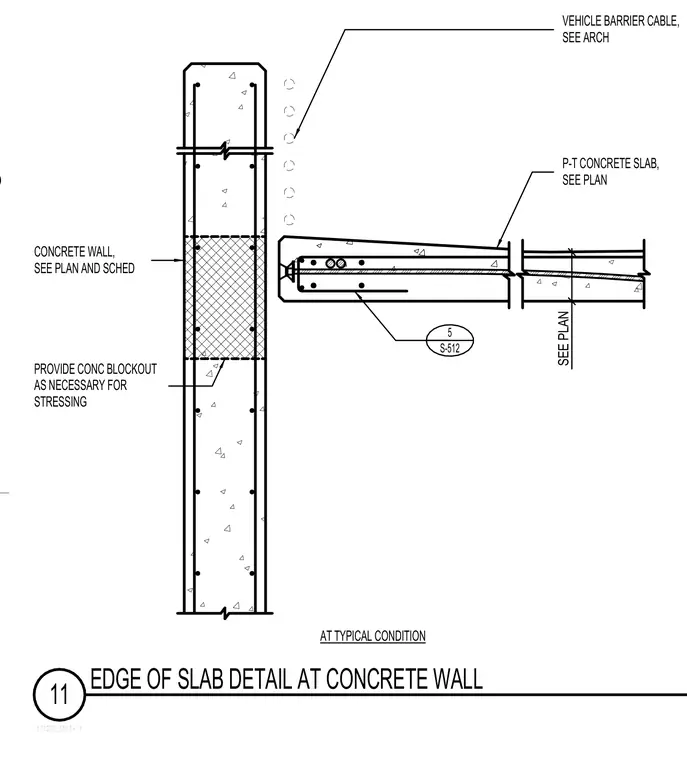

A post-tensioned concrete slab intersects a reinforced cast-in-place concrete wall at a typical condition. A concrete blockout is provided in the wall as necessary for stressing the post-tensioned tendons. Vehicle barrier cables are positioned along the wall face per architectural drawings. Reinforcing steel and slab thickness are sized per plan.
171220_S513-11 EDGE OF SLAB DETAIL AT CONCRETE WALL 11 5 S-512 P-T CONCRETE SLAB, SEE PLAN VEHICLE BARRIER CABLE, SEE ARCH CONCRETE WALL, SEE PLAN AND SCHED AT TYPICAL CONDITION PROVIDE CONC BLOCKOUT AS NECESSARY FOR STRESSING SEE PLAN D
