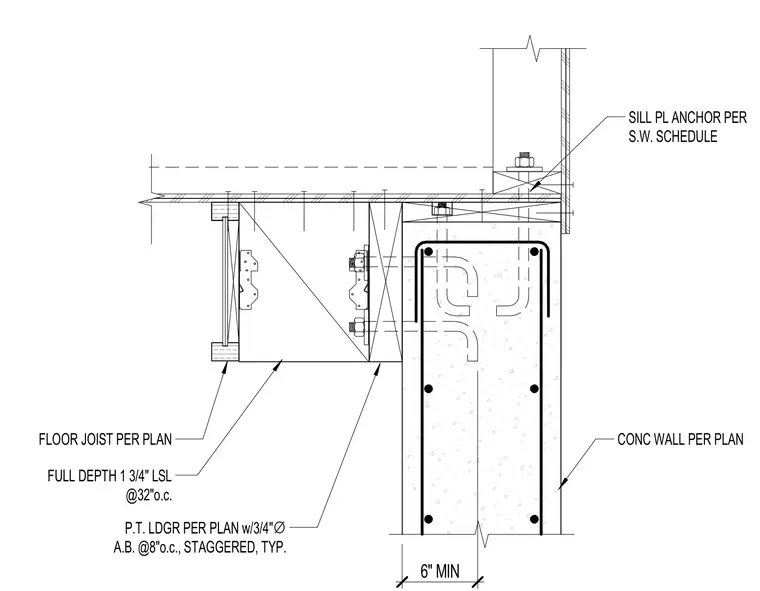

Floor joists bear on a full-depth 1-3/4 inch laminated strand lumber member spaced at thirty-two inches on center. A pressure-treated ledger is secured to the concrete wall with three-quarter-inch diameter anchor bolts spaced at eight inches on center, staggered. A sill plate anchor is installed at the top of the concrete wall per the structural wall schedule. The concrete wall has a minimum thickness of six inches and contains vertical and horizontal reinforcing bars.
FULL DEPTH 1 3/4" LSL @32"o.c. P.T. LDGR PER PLAN w/3/4" ∅ A.B. @8"o.c., STAGGERED, TYP. FLOOR JOIST PER PLAN 6" MIN SILL PL ANCHOR PER S.W. SCHEDULE CONC WALL PER PLAN
