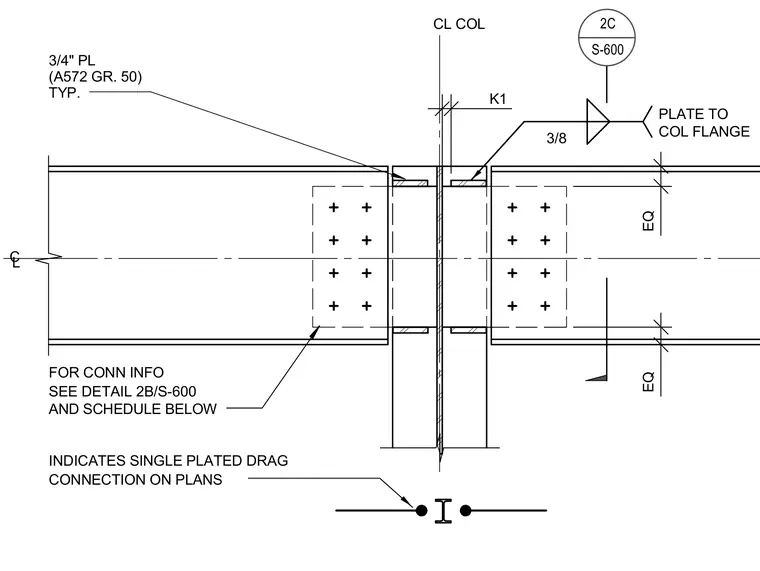

Steel beams frame into a wide-flange column flange using connection plates welded with a 3/8-inch fillet weld to the column flange. The connection incorporates a three-quarter-inch ASTM A572 Grade 50 plate typically. A single plated drag connection is indicated on plans, with specific connection information referenced to detail 2B/S-600.
EQ K1 COL FLANGE PLATE TO CL COL 3/8 CL FOR CONN INFO SEE DETAIL 2B/S-600 CONNECTION ON PLANS INDICATES SINGLE PLATED DRAG AND SCHEDULE BELOW EQ 3/4" PL (A572 GR. 50) TYP. 2C S-600
