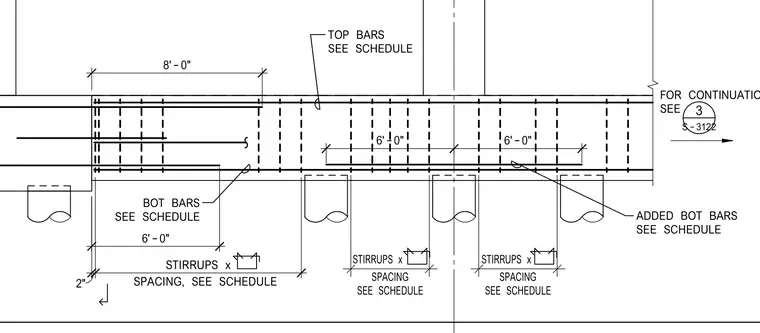

Reinforcing steel arrangement for a concrete beam features top bars, bottom bars, and added bottom bars sized per schedule. Stirrups are spaced at various intervals with a two-inch starting offset. Dimensions map out reinforcing zones across six-foot and eight-foot lengths, continuing to sheet S-3122.
FOR CONTINUATION SEE S-3122 3 6'-0" 8'-0" TOP BARS SEE SCHEDULE BOT BARS SEE SCHEDULE ADDED BOT BARS SEE SCHEDULE 2" SPACING, SEE SCHEDULE STIRRUPS x 6'-0" 6'-0" STIRRUPS x SPACING SEE SCHEDULE SPACING SEE SCHEDULE STIRRUPS x
