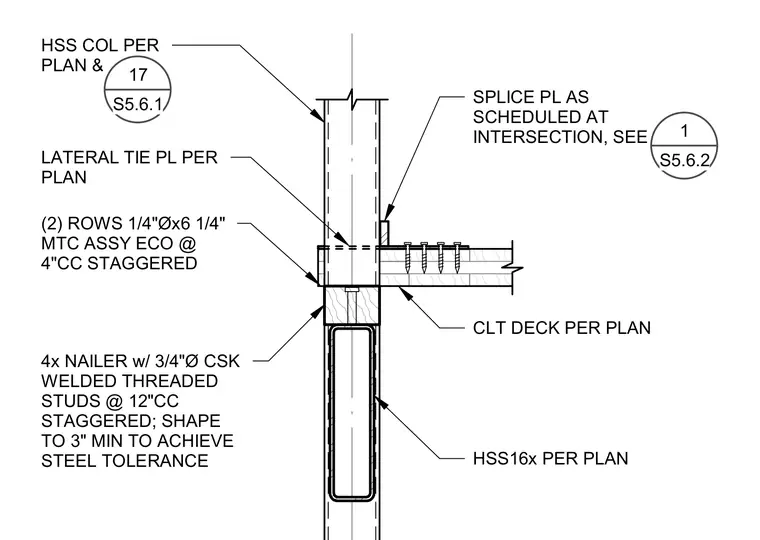

A cross-laminated timber deck bears against a hollow structural section column sized per plan. A four-times timber nailer attaches to the top of the lower HSS member using three-quarter-inch diameter countersunk welded threaded studs spaced at twelve inches on center staggered, shaped to three inches minimum to achieve steel tolerance. A splice plate as scheduled connects at the intersection, accompanied by a lateral tie plate per plan. Two rows of one-quarter-inch diameter by six and one-quarter-inch MTC assembly ECO screws fasten at four inches on center staggered.
HSS COL PER PLAN & HSS16x PER PLAN CLT DECK PER PLAN LATERAL TIE PL PER PLAN SPLICE PL AS SCHEDULED AT INTERSECTION, SEE 4x NAILER w/ 3/4"Ø CSK WELDED THREADED STUDS @ 12"CC STAGGERED; SHAPE TO 3" MIN TO ACHIEVE STEEL TOLERANCE (2) ROWS 1/4"Øx6 1/4" MTC ASSY ECO @ 4"CC STAGGERED 1 S5.6.2 17 S5.6.1
