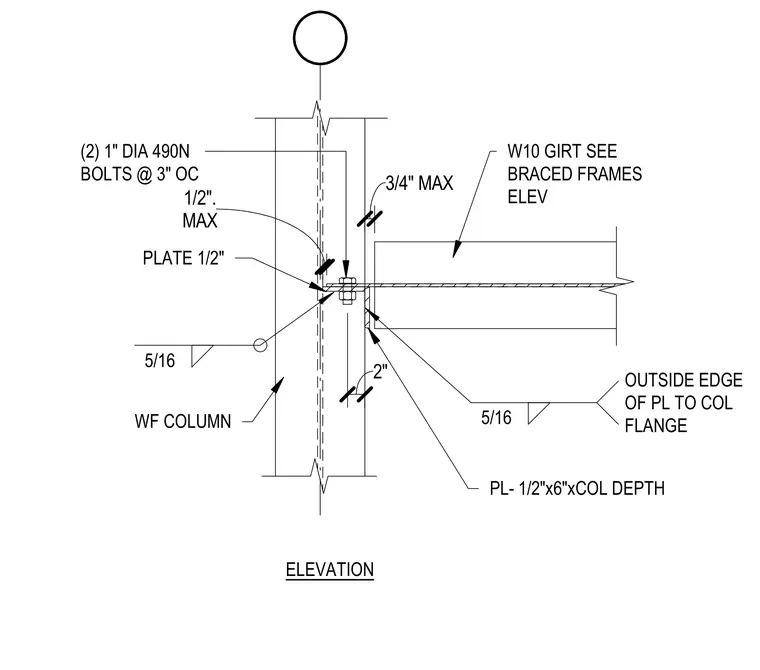

A W10 girt frames into a wide flange steel column using a one-half-inch thick plate matching the column depth. The connection plate is welded to the column flange with a five-sixteenths-inch fillet weld and measures two inches from the outside edge of the plate to the column flange. The girt connects to the plate with two one-inch diameter A490N bolts spaced at three inches on center. A maximum clearance of three-quarters of an inch and one-half inch is maintained at the connection interface.
PLATE 1/2" 3/4" MAX WF COLUMN (2) 1" DIA 490N BOLTS @ 3" OC W10 GIRT SEE BRACED FRAMES ELEV 5/16 PL- 1/2"x6"xCOL DEPTH 5/16 ELEVATION MAX 1/2". 2" OUTSIDE EDGE OF PL TO COL FLANGE
