Bolted Braced Frame Beam to Column Connection

Elements

Connections

Braced Frame Connection Welded Connection Bolted Connection

About this detail

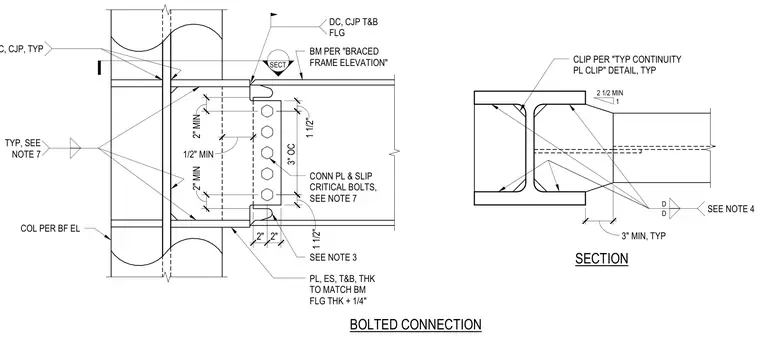

A structural steel beam connects to a column flange using top and bottom connection plates matched in thickness to the beam flange plus one quarter inch, secured with slip-critical bolts. Complete joint penetration groove welds join the top and bottom flanges to the column with backing bars and demand-critical designation. A continuity plate clip is detailed with a two-and-a-half to one slope transition and welded to the column web and flanges. Edge distances and fastener spacings are maintained at two inches minimum for the bolt group with a three-inch on-center vertical pitch.
