Structural · S-6T685

Standard Hook and Tie Details

Elements

Connections

About this detail

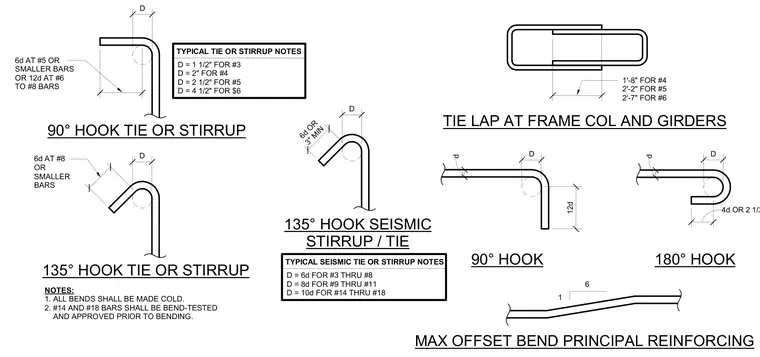

Standard reinforcing bar hook, stirrup, tie, and lap configurations provide specified bend diameters and extension lengths for concrete framing. Bends are made cold, with larger #14 and #18 bars bend-tested and approved prior to bending. Ninety-degree, 135-degree seismic, and 180-degree hooks incorporate designated bend diameters (D) and tail extensions ranging from 4d to 12d or specified minimum lengths. Tie laps at frame columns and girders detail required lap lengths for different bar sizes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
