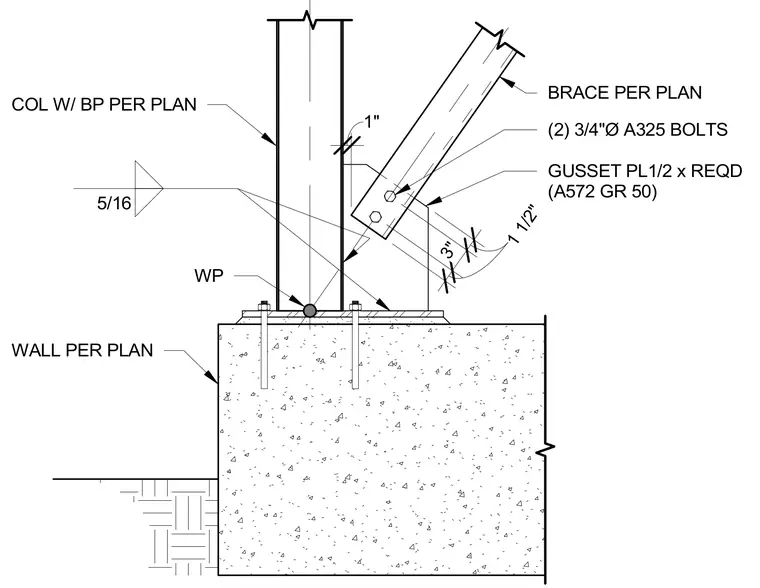

A diagonal structural brace connects to a column baseplate supported by a concrete foundation wall. A half-inch thick ASTM A572 Grade 50 gusset plate is welded to the column with a 5/16-inch fillet weld and extends down to the baseplate. The brace member attaches to the gusset plate using two 3/4-inch diameter ASTM A325 bolts. The working point is located at the intersection of the column and brace centerlines.
COL W/ BP PER PLAN 1 1/2" 3" 1 1/2" BRACE PER PLAN (2) 3/4"Ø A325 BOLTS GUSSET PL1/2 x REQD (A572 GR 50) WALL PER PLAN WP 5/16 1"
