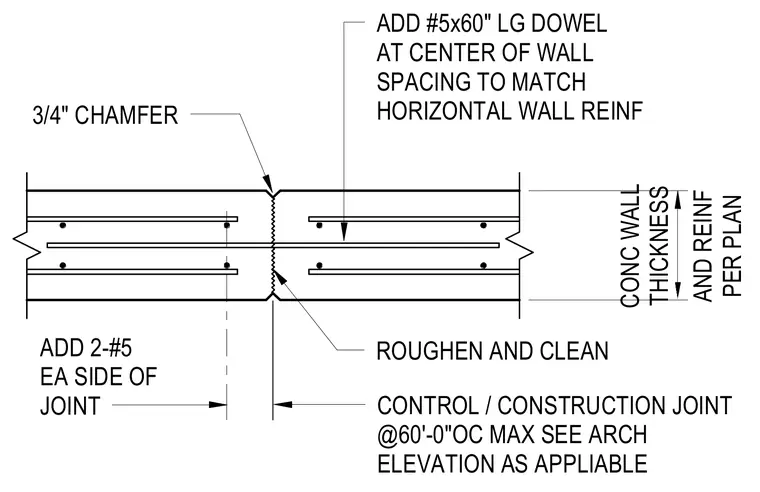

A control and construction joint in a concrete wall features a roughened and cleaned interface spaced at a maximum of sixty feet on center. Two number five bars are added on each side of the joint, complemented by a center wall number five by sixty inch long dowel matching the horizontal wall reinforcement spacing. A three-quarter inch chamfer is formed at the exterior edges.
AND REINF PER PLAN CONC WALL THICKNESS 3/4" CHAMFER ADD 2-#5 EA SIDE OF JOINT ROUGHEN AND CLEAN CONTROL / CONSTRUCTION JOINT @60'-0"OC MAX SEE ARCH ELEVATION AS APPLIABLE ADD #5x60" LG DOWEL AT CENTER OF WALL SPACING TO MATCH HORIZONTAL WALL REINF
