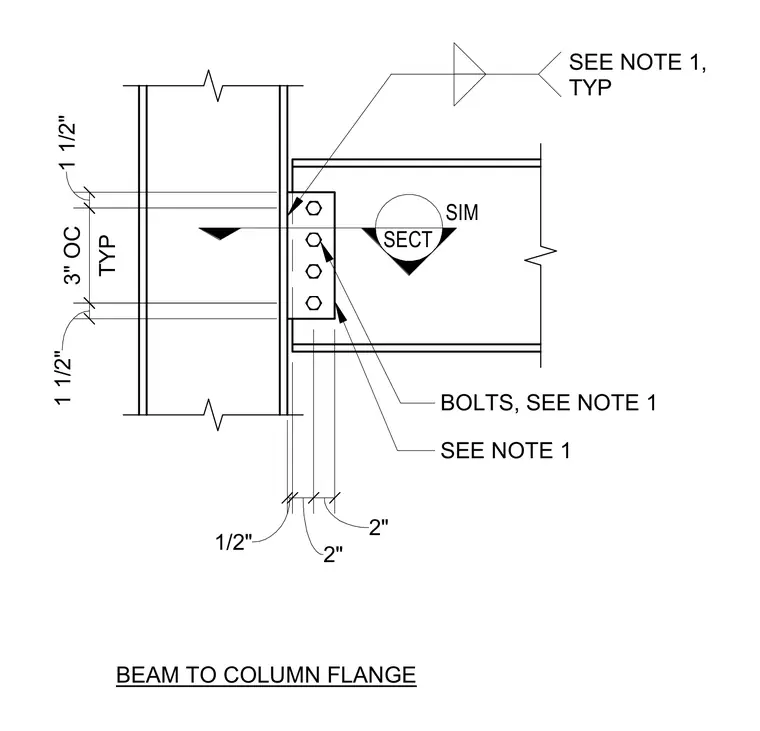

A structural steel beam connects to a column flange using a bolted framing connection. Four bolts secure the beam web through a connecting plate welded to the column flange. Edge distances and fastener spacing are specified with dimensional callouts including three inches on center and typical one and one-half inch clearances.
SECT 1 1/2" 1 1/2" 1/2" 2" 2" TYP 3" OC SEE NOTE 1 BOLTS, SEE NOTE 1 SIM BEAM TO COLUMN FLANGE SEE NOTE 1, TYP
