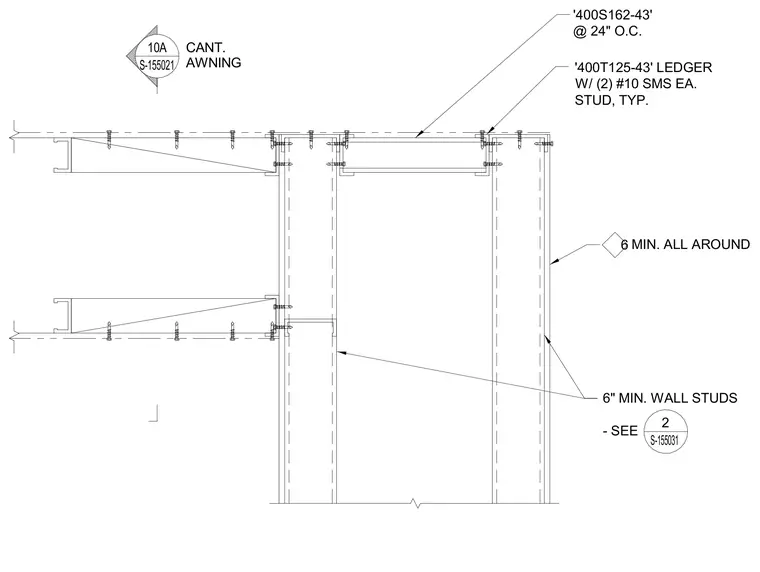

Cold-formed steel wall studs measuring 400S162-43 at 24 inches on center support a 400T125-43 ledger track. The cantilevered awning ledger is secured to each stud with two number 10 sheet metal screws typically. Wall assembly requires six inches minimum studs all around as referenced.
10A S-155021 CANT. AWNING 6 '400T125-43' LEDGER W/ (2) #10 SMS EA. STUD, TYP. '400S162-43' @ 24" O.C. 6" MIN. WALL STUDS - SEE MIN. ALL AROUND 2 S-155031
