A structural steel bottom flange brace connection is detailed with an L4x4x1/2 angle brace fastened with two 1" diameter A325-N bolts at each end to a 3/8" gusset plate. The column cap plate matches the beam width or column width plus 1/2" with a thickness equal to the beam flange at 3/4" minimum. Three-eighths inch stiffener plates are welded to each side of the column web with 3/16" fillet welds and 2" returns. The connection includes shear plates with 3/4" diameter A307 bolts at standard gauge.

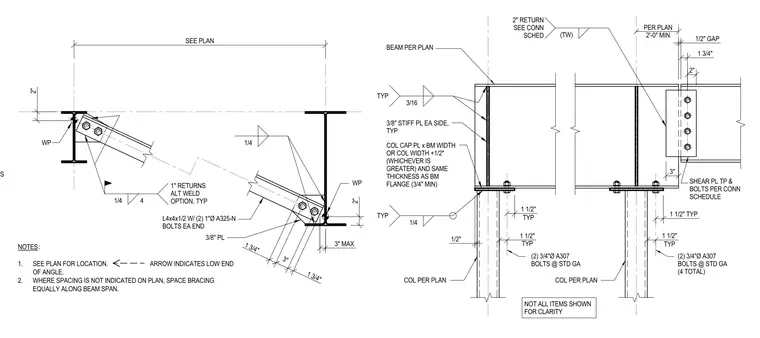

3" PER PLAN 2'-0" MIN 1 1/2" TYP 1/2" 1 1/2" TYP 1/2" GAP 1 1/2" TYP 1 1/2" TYP 1 3/4" 2" 3/8" STIFF PL EA SIDE, TYP COL CAP PL x BM WIDTH OR COL WIDTH +1/2" (WHICHEVER IS GREATER) AND SAME THICKNESS AS BM FLANGE (3/4" MIN) NOT ALL ITEMS SHOWN FOR CLARITY (2) 3/4"Ø A307 BOLTS @ STD GA (2) 3/4"Ø A307 BOLTS @ STD GA (4 TOTAL) SHEAR PL TP & BOLTS PER CONN SCHEDULE COL PER PLAN COL PER PLAN BEAM PER PLAN 3/16 (TW) 2" RETURN SEE CONN SCHED 1/4 TYP TYP 1 3/4" 2" SEE PLAN 2" 3" 1 3/4" 3" MAX NOTES: 1. SEE PLAN FOR LOCATION. ARROW INDICATES LOW END OF ANGLE. 2. WHERE SPACING IS NOT INDICATED ON PLAN, SPACE BRACING EQUALLY ALONG BEAM SPAN. L4x4x1/2 W/ (2) 1"Ø A325-N BOLTS EA END 3/8" PL 1/4 WP WP 1/4 4 1" RETURNS ALT WELD OPTION, TYP 3 SIDES
