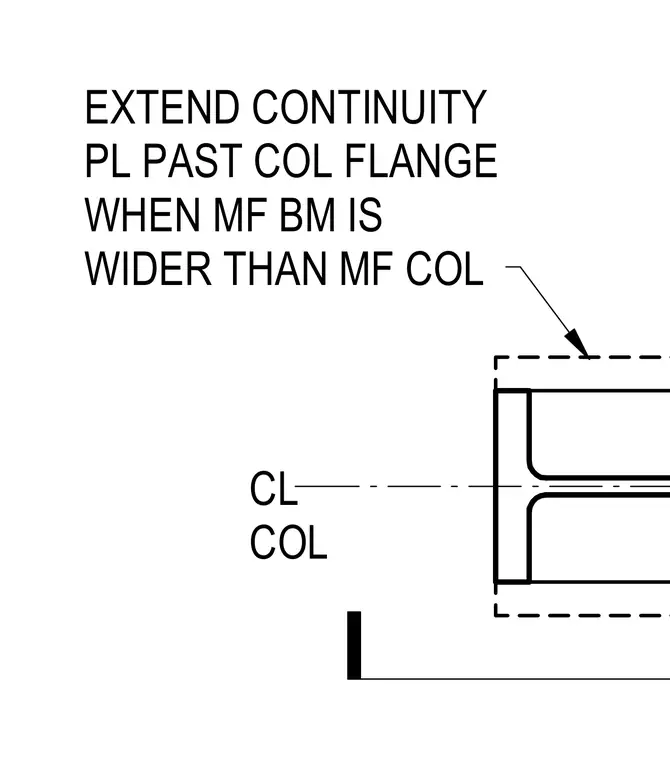

Continuity plates extend past the column flange when the moment frame beam is wider than the moment frame column. The center line of the column aligns with the structural assembly.
