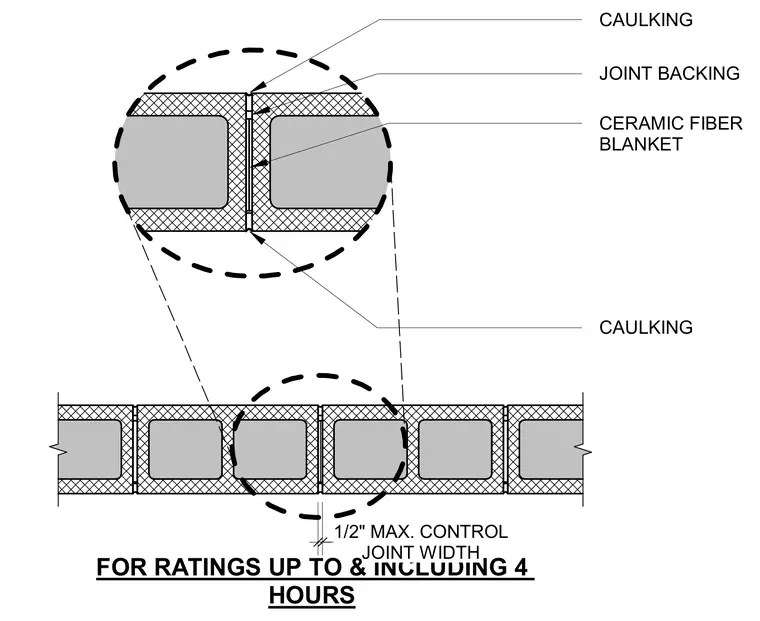

This fire-rated control joint detail provides up to four hours of fire resistance for masonry walls. The joint incorporates caulking at the exterior faces, a joint backing, and an internal ceramic fiber blanket. The maximum control joint width is restricted to one-half inch.
FOR RATINGS UP TO & INCLUDING 4 HOURS CAULKING JOINT BACKING CERAMIC FIBER BLANKET CAULKING JOINT WIDTH 1/2" MAX. CONTROL
