Structural · S-6SB65

Door Jamb Connection at Screen Wall

Materials

Concrete Steel Metal (misc.)

Elements

Beams Walls Doors Roofs Floors / Slabs Decks

Connections

Bolted Connection

About this detail

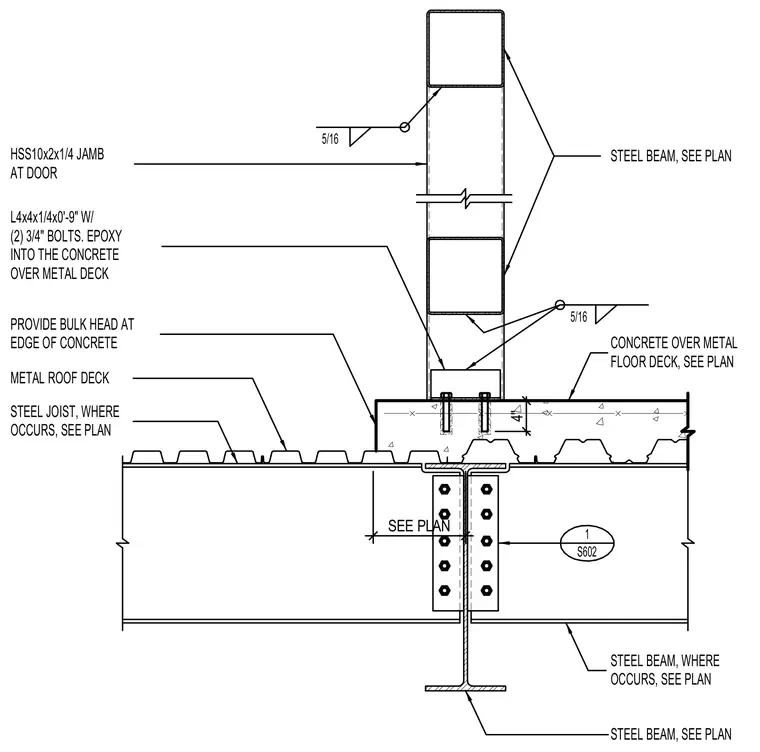

A hollow structural section door jamb anchors to a concrete slab over a metal floor deck, supported by structural steel beams and joists. The HSS10x2x1/4 jamb is welded to steel framing with five-sixteenths inch fillet welds and secured to the concrete slab using an L4x4x1/4 by zero foot nine inch angle with two three-quarter inch epoxy-anchored bolts. A concrete bulkhead is provided at the edge of the slab adjacent to the metal roof deck. Steel beams and joists are sized per the structural framing plan.
