Structural · S-6S8X8

Channel Framing and SC-12C Column Connection

Materials

Steel

About this detail

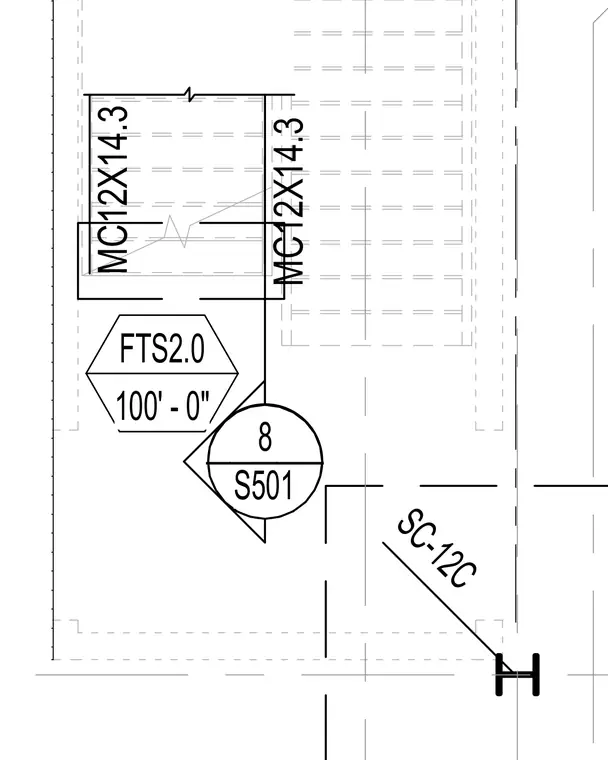

MC12X14.3 channels frame into an SC-12C structural steel column at elevation 100'-0".

SC-12C MC12X14.3 MC12X14.3 100' - 0" FTS2.0 8 S501 _____

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
