A 48-inch thick mat footing is reinforced with number 9 bars placed at 10 inches on center top and bottom in each direction. The top of the footing is set at elevation 97 feet 6 inches. The minimum structural fill requirements are determined per the soils report.

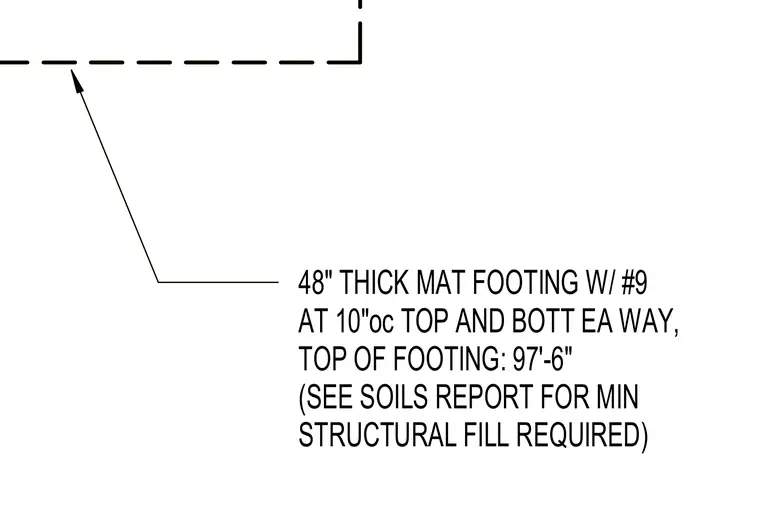

48" THICK MAT FOOTING W/ #9 AT 10"oc TOP AND BOTT EA WAY, TOP OF FOOTING: 97'-6" (SEE SOILS REPORT FOR MIN STRUCTURAL FILL REQUIRED) 48" THICK MAT FOOTING W/ #9 AT 10"oc TOP AND BOTT EA WAY, TOP OF FOOTING: 97'-6" (SEE SOILS REPORT FOR MIN STRUCTURAL FILL REQUIRED)
