Wide-Flange Beam to Column Flange Connection with Stiffener Plates

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

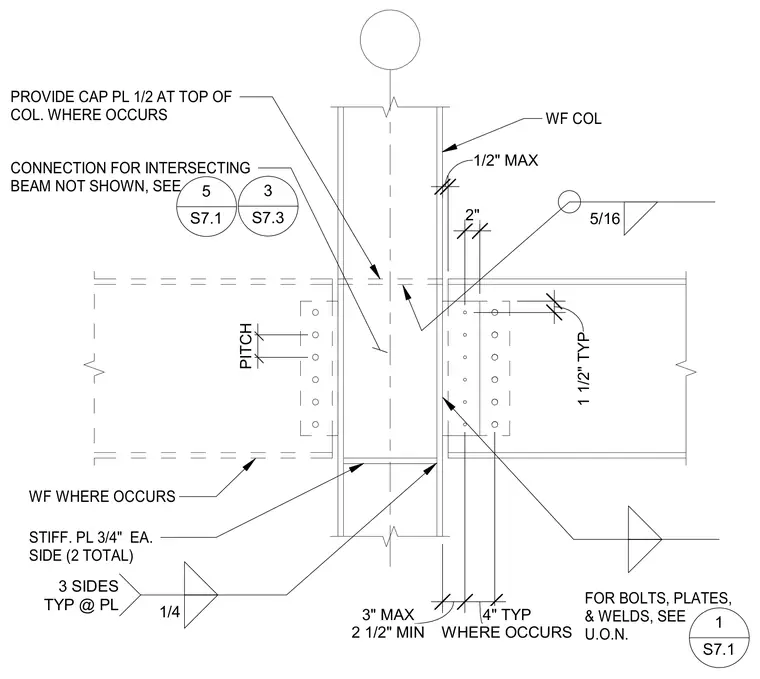

A wide-flange beam frames into the flange of a wide-flange column using bolted and welded connections. Three-quarter-inch stiffener plates are provided on each side of the column web, totaling two plates, welded with one-quarter-inch fillet welds on three sides typically at the plates. A one-half-inch cap plate is provided at the top of the column where it occurs. Additional intersecting beam connections are referenced to sheet S7.1 and detail 3 on sheet S7.3. Bolts, plates, and welds follow general structural notes unless otherwise noted.
