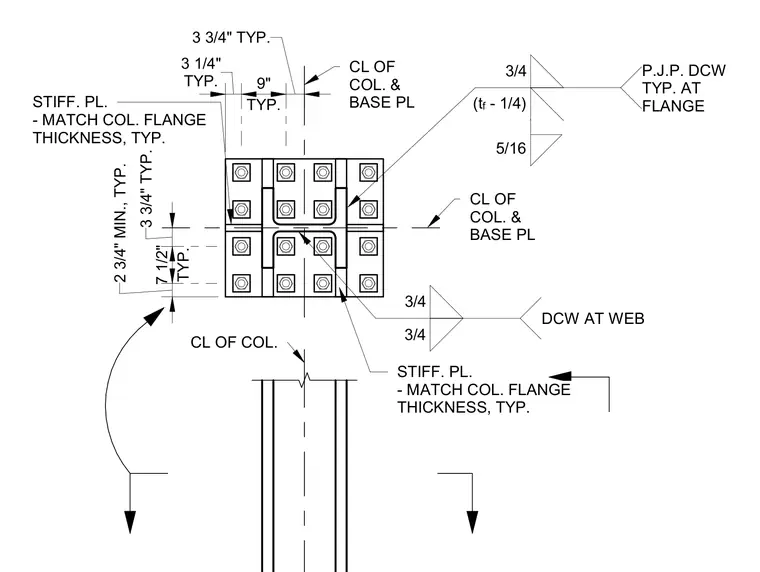

A structural steel column connects to its base plate assembly with stiffener plates matching the column flange thickness on each side. The column flanges receive a partial-joint-penetration double-bevel weld with a three-quarter-inch size and a five-sixteenth-inch fillet weld, while the web is connected with a three-quarter-inch double-bevel weld. Anchor bolts are arranged symmetrically around the column profile with specified minimum edge distances and spacing dimensions.
CL OF COL. CL OF COL. & BASE PL CL OF COL. & BASE PL TYP. 3 1/4" TYP. 9" 3 3/4" TYP. 2 3/4" MIN., TYP. TYP. 7 1/2" 3 3/4" TYP. 3/4 P.J.P. DCW TYP. AT FLANGE 5/16 (t f - 1/4) 3/4 3/4 DCW AT WEB STIFF. PL. - MATCH COL. FLANGE THICKNESS, TYP. STIFF. PL. - MATCH COL. FLANGE THICKNESS, TYP.
