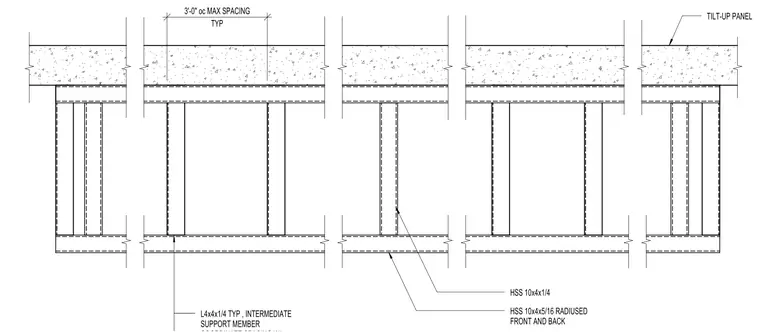

Intermediate support members consist of hollow structural sections measuring HSS 10x4x1/4 spaced at a maximum of three feet on center typical. The front and back members feature hollow structural sections measuring HSS 10x4x5/16 radiused. Typical framing includes angle sections measuring L4x4x1/4 for intermediate support members.
L4x4x1/4 TYP , INTERMEDIATE SUPPORT MEMBER HSS 10x4x1/4 HSS 10x4x5/16 RADIUSED FRONT AND BACK TYP 3'-0" oc MAX SPACING TILT-UP PANEL
