Structural · S-6R8VV

Buckling-Restrained Brace Footing Anchor and Gusset Detail

Materials

Concrete Masonry / CMU

Elements

Floors / Slabs Foundations / Footings Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Gusset Plate Base Plate / Anchorage Bracing Connection Rebar Splice / Development Embed Plate

About this detail

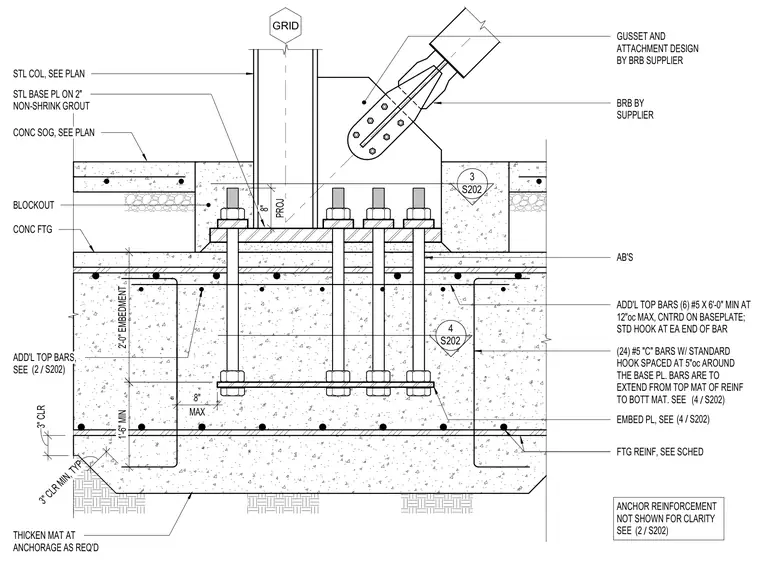

A structural steel column and buckling-restrained brace connection anchor into a concrete footing. The steel column bears on a steel base plate set on a two-inch layer of non-shrink grout above a concrete blockout and slab on grade. The buckling-restrained brace connects via a gusset plate attached to the column and base assembly. Below the base plate, heavy anchor bolts extend two feet into the concrete footing, secured with an embedment plate and twenty-four number five 'C' bars spaced at five inches on center with standard hooks extending between the top and bottom reinforcing mats. Additional top reinforcement consists of six number five bars at six feet long spaced at twelve inches on center centered on the baseplate, alongside thickened footing mat requirements as needed.
