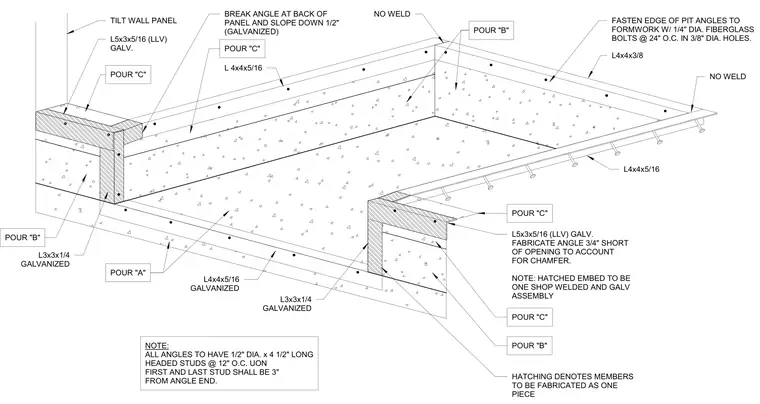

Galvanized steel angles, including L5x3x5/16 long-leg-vertical, L4x4x5/16, L4x4x3/8, and L3x3x1/4 profiles, form the perimeter of a concrete pit. The angles are fabricated as a single shop-welded and galvanized assembly, with specific angles shortened by 3/4 inch to accommodate concrete chamfers. The edge angles are fastened to the formwork using 1/4 inch diameter fiberglass bolts spaced at 24 inches on center through 3/8 inch diameter holes. Headed studs measuring 1/2 inch diameter by 4 1/2 inches long are welded to the angles at 12 inches on center, with the first and last studs positioned 3 inches from the angle ends. A break angle is provided at the back of the panel, sloped down by 1/2 inch to manage drainage.
Text on the drawing
L 4x4x5/16 L4x4x5/16 GALVANIZED L3x3x1/4 GALVANIZED POUR "B" POUR "C" L5x3x5/16 (LLV) GALV. FABRICATE ANGLE 3/4" SHORT OF OPENING TO ACCOUNT FOR CHAMFER. NOTE: HATCHED EMBED TO BE ONE SHOP WELDED AND GALV ASSEMBLY L4x4x5/16 NO WELD FASTEN EDGE OF PIT ANGLES TO FORMWORK W/ 1/4" DIA. FIBERGLASS BOLTS @ 24" O.C. IN 3/8" DIA. HOLES. L4x4x3/8 NO WELD BREAK ANGLE AT BACK OF PANEL AND SLOPE DOWN 1/2" (GALVANIZED) L5x3x5/16 (LLV) GALV. TILT WALL PANEL POUR "C" POUR "C" L3x3x1/4 GALVANIZED POUR "A" POUR "B" POUR "C"
