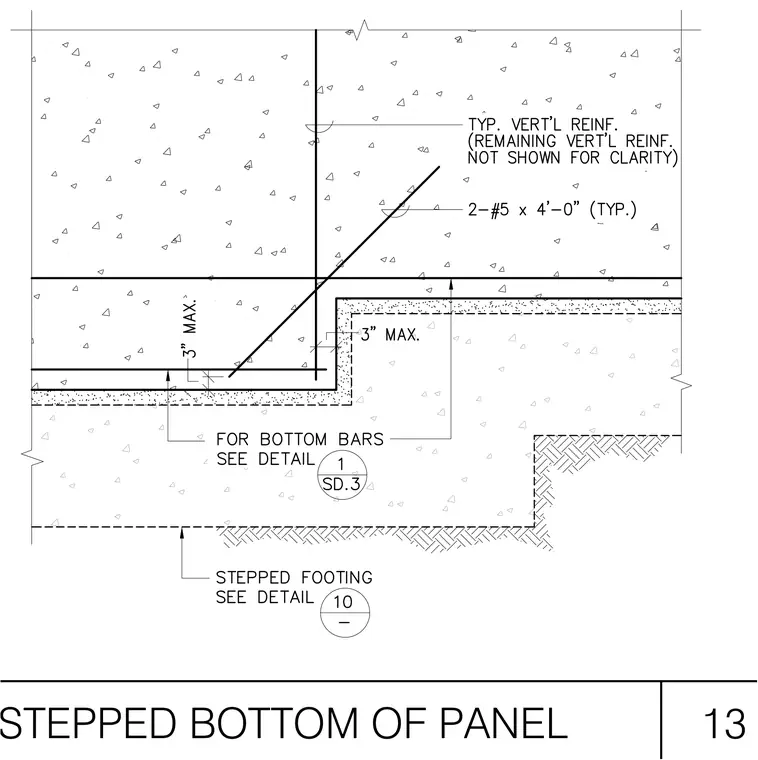

A precast concrete wall panel rests above a stepped footing at the stepped bottom condition. Typical vertical reinforcement consists of two number five bars at four feet zero inches typical, with remaining vertical reinforcement omitted for clarity. A maximum three-inch step dimension regulates the offset profile at the panel interface. Bottom bar reinforcement and footing conditions reference additional designated sheet details.
